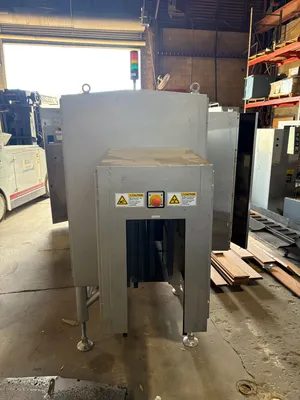

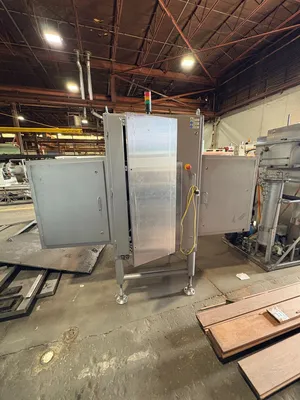

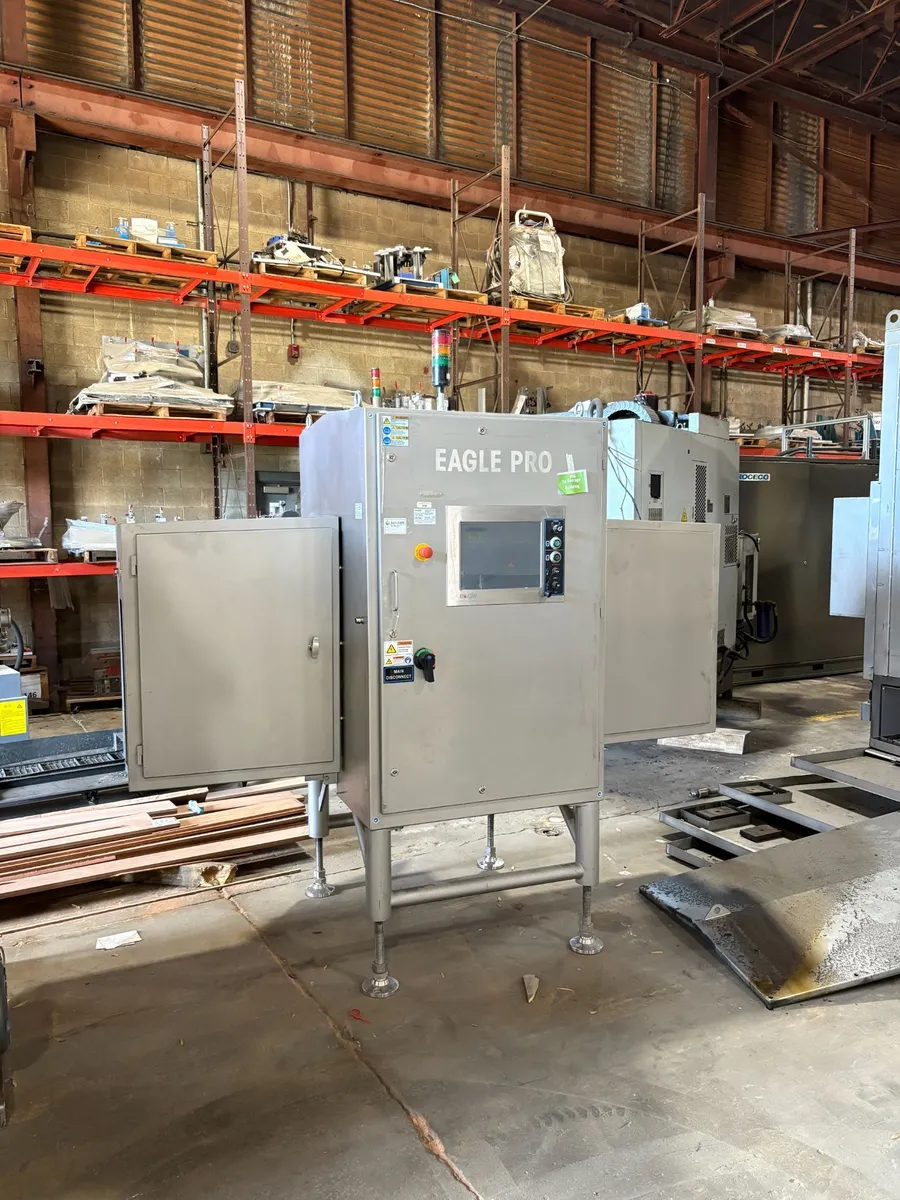

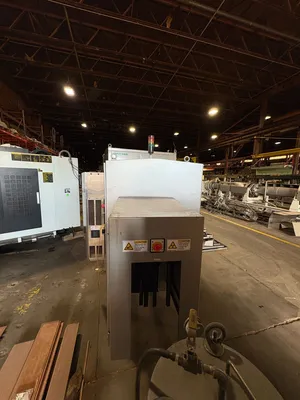

EAGLE MACHINE EAGLE TALL PRO X 100-400 FPM

Description

SPECS:
Inspection Coverage: Side-View Detection; from 275 mm (10.8″) Height at ≤127 mm (5″) Diameter to 212 mm (8.3″) Height at ≤203 mm (8″) Diameter
Inspection Modes: SimulTask™ 4 PRO standard inspection modes include contaminant, bone, missing item, clip, void, premium, shape/size, position, fill level, count, zonal mass, mass measurement with 2, 3, or 5 zone checkweighing functionality with statistics

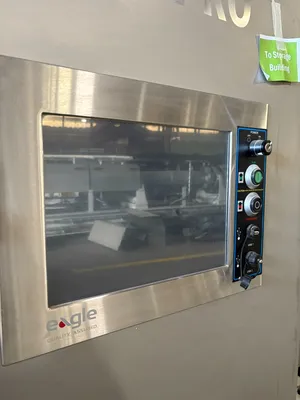

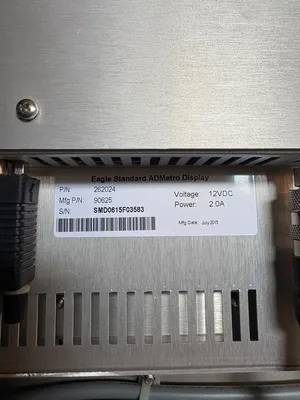

User Interface & Operating System: 15″ TFT color touch screen; Windows 10 Enterprise LTSB with Eagle SimulTask™ 4 PRO Control & Imaging Software; TeamViewer™ service tool for remote machine diagnostics & product set-up services

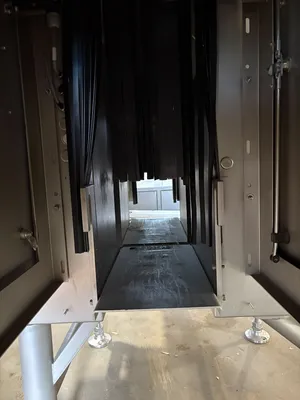

Conveyor Size: Installs over existing conveyors from 75 mm (3″) to 178 mm (7″) wide; 2400 mm (94.5″) overall machine length
Reject Mechanism: 24VDC Signal only, remote mounted airblast, push arm, side impulse push, high speed servo, custom rejects
Speed Range: 25 – 122 MPM (100 FPM – 400 FPM)

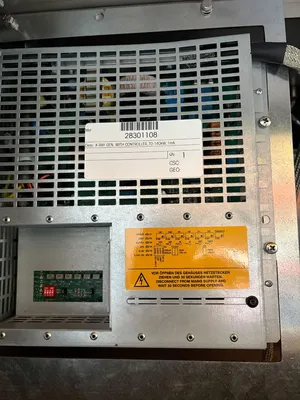

X-ray Power: Single horizontal beam; 70-140kW

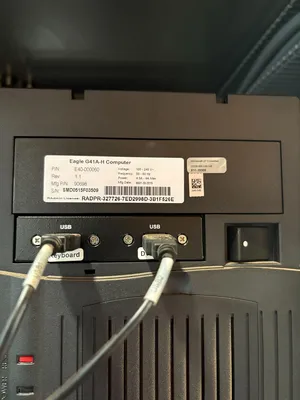

Communication: (2) USB 2.0 ports, (1) Ethernet 10/100/1000 mbps port, (1) RS232 serial port; (1) EtherNet/IP Fieldbus interface port optional
IP Rating & Machine Finish: IP65 Standard

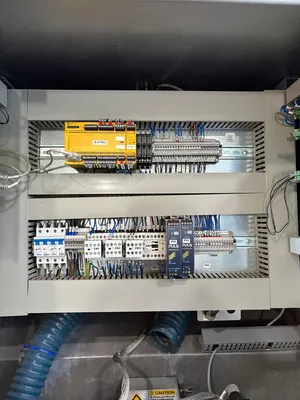

Electrical Safety: Compliant with CAT-3 (EN954), PLd (EN13849) safety circuits with system visualization

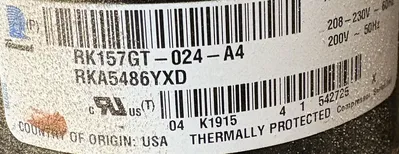

Thermal Management: TECUMSEH RK157GT-024-A4
Operating Range: 0°C to 40°C (32°F to 104°F) 25% to 90% relative humidity non-condensing

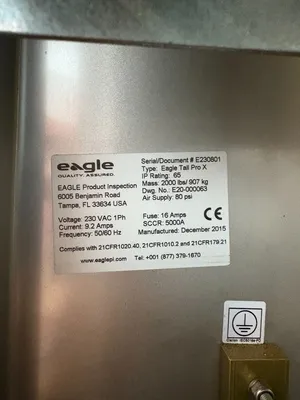

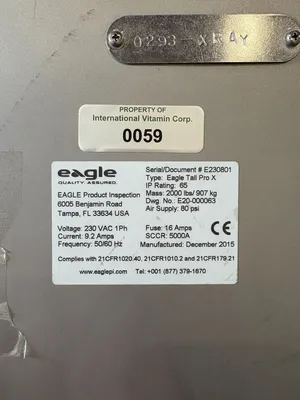

Power Requirements: 230VAC 1Ph 9.2A 50/60Hz
EAGLE TALL PRO X, used test and measurement equipment from renowned manufacturer EAGLE. Ideal for professionals seeking reliable performance in a compact design.
